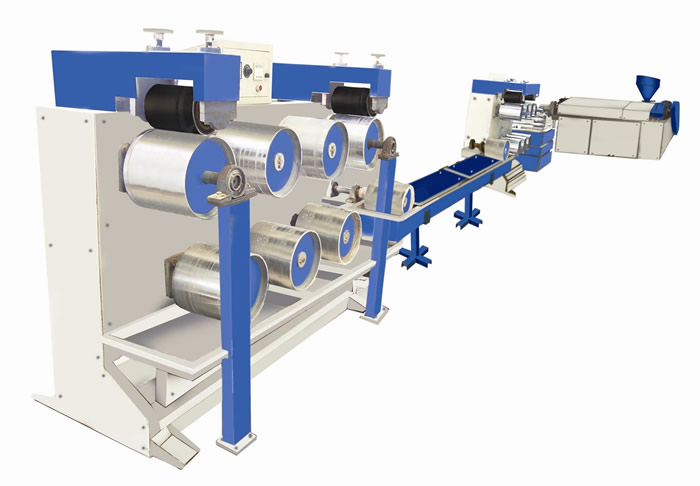

To manufacture HDPE/PP/NYLON Monofilaments for manufacturing ropes, brushes etc.
Specification :
| Model | MAF/50/ MONOFIL | MAF/65/ MONOFIL | MAF/75/ MONOFIL | MAF/90/ MONOFIL |
| Screw dia (mm) | 50 | 65 | 75 | 90 |
| L/D Ratio | 26:1 | 30:1 | 30:1 | 32:1 |
| Max. Out Put(Kg./hr. | 30 to 40 | 50 to 70 | 75 to 90 | 150 to 180 |
| No of Filaments | 180 to 240 | 240 | 320 | 500 |
| Main Motor(KW DC) | 15 | 18.5 | 30 | 55 |
| Max. Line Speed(Mtr./Min.) | 40 to 120 | 40 to 120 | 40 to 120 | 150 |
| Total Connected Load(KW.) | 55.28 | 69.68 | 87.88 | 161.82 |
| Flange Winders | 10 Nos. | 16 Nos. | 20 Nos | 20 Nos. |
| Dimensions Without winder in Mtrs (L x W x H) | 11 x 3 x 2.5 | 13.5 x 4.3 x 2.5 | 13.7 x 4.5 x 2.5 | — |
