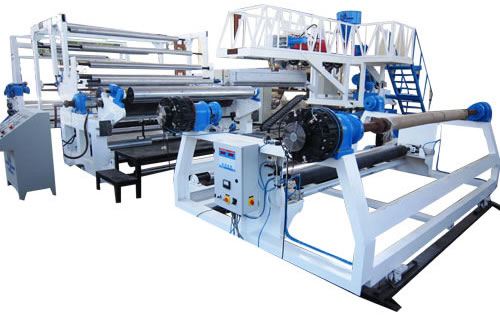

For coating thin layer of polyolefins (Mainly LDPE/PP) on substrates like Paper, Cotton Cloth, Woven fabrics, Jute fabric, Aluminum foil, BOPP film, Polyester film, etc. up to 3150mm Web width applications.
Salient Features
- Helical gear box.
- All AC frequency drive with synchronized system.
- Two station surface winder with auto splicing arrangement.
- Turret type Unwinder/ Rewinder and sandwich unwinder facility
- Super finished/Matt finished laminator roller.
- Special winder facilities that make 2 Meter fold from 4 Meter laminated cloth.
- Hydraulic operated screen changer for easy operator friendly change over of screens.
- Hydraulic operated Pressure roll system instead of Pneumatic system.
Read More –>Extrusion Coating Lamination Plant
Specification
| Model | MAF/75 /LAMINATION |
MAF/90 /LAMINATION |
MAF/100 /LAMINATION |
MAF/110 /LAMINATION/ |
| SCREW DIA | 75 | 90 | 100 | 110 |
| L/D | 30 | 30 | 30 | 32 |
| MAIN MOTOR(KW) | 30 KW AC MOTOR | 45 KW AC MOTOR | 56 KW AC MOTOR | 75 KW AC MOTOR |
| EXTRUDER OUTPUT (KG/HR) | 120-130 | 180-210 | 230-250 | 325-350 |
| EXTRUDER UP/DOWN | PROVIDED | PROVIDED | PROVIDED | PROVIDED |
| EXTRUDER FORWARD/REVERSE | PROVIDED | PROVIDED | PROVIDED | PROVIDED |
| SCREEN CHANGER | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC |
| T’ DIE (COAT HANGER TYPE) | 1350/1600 MM | 2000/2200 MM | 2650 MM | 3300/4000 MM |
| UNWINDER | TWO STATION MECHANICAL UNWINDER | TWO STATION MECHANICAL UNWINDER | TWO STATION MECHANICAL UNWINDER | TWO STATION MECHANICAL UNWINDER |
| WEB ALLIGNER | PROVIDED | PROVIDED | PROVIDED | PROVIDED |
| LAMINATOR UNIT | ||||
| CHILL ROLL (DIA X L) | 500 X 1350/1600 | 500 X 2000/2200 | 500 x 2650 | 500 x 3300/4000 |
| CHILL ROLL DRIVE(DC – KW) | 3.7 KW | 5.5 KW | 7.5 KW | 11 KW |
| PRESSURE ROLLER | HYDRAULIC OPERATED | HYDRAULIC OPERATED | HYDRAULIC OPERATED | HYDRAULIC OPERATED |
| WINDER | TWO STATION SURFACE WINDER WITH AUTO SPLICING ARRANGENENT | TWO STATION SURFACE WINDER WITH AUTO SPLICING ARRANGENENT | TWO STATION SURFACE WINDER WITH AUTO SPLICING ARRANGENENT | TWO STATION SURFACE WINDER WITH AUTO SPLICING ARRANGENENT |
| PREHEATING HOT PLATE | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| SECONDARY UNWINDER | PROVIDED | PROVIDED | PROVIDED | OPTIONAL |
| TURN BAR | PROVIDED | PROVIDED | PROVIDED | OPTIONAL |
| MANUAL EDGE TRIMMING | PROVIDED | PROVIDED | PROVIDED | PROVIDED |
