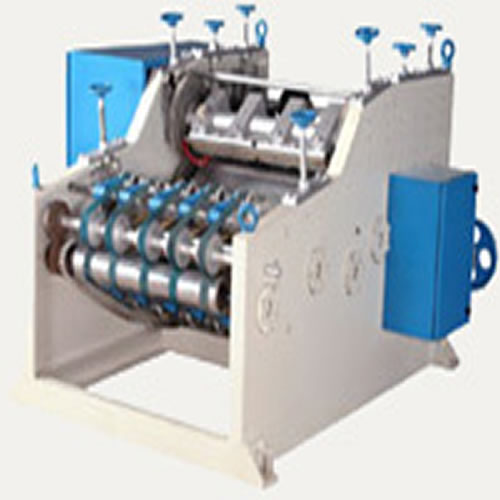

For cutting of Laminated or Un-laminated woven fabrics
For Laminated Fabrics
| Description | |
| Single Station Mechanical Unwinder | |
| Web width(W),Web Dia(D),Weight(kg) | 760mm X 750mm X 300 kg |
| Tension Control | Mechanical Brake |
| Nip Roller | |
| Rubber Roll | 1 Nos |
| Steel Roll | 1 Nos |
| Nip Roll Drive | From Cutter Unit |
| Cutter Unit For Laminated Fabrics | |
| Rotating Blade | 1 Nos |
| Stationary Blade | 1 Nos |
| Blade Heating Load (kw) | 3 |
| Drive (kw) | 3.7 kw DC motor |
| Belt Conveyor System | Provided |
| (Total Connected Load (kw)) | 6.7 |
For Unlaminated Fabrics
| Description | |
| Single Station Mechanical Unwinder | |
| Web width(W),Web Dia(D),Weight(kg) | 750mm X 1000mm X 300 |
| Tension Control | Mechanical Brake |
| Nip Roller | |
| Rubber Roll | 1 Nos |
| Steel Roll | 1 Nos |
| Nip Roll Drive | From Cutter Unit |
| Cutter Unit For Unlaminated Fabrics | |
| Nip Roller | 1 Pair |
| Fixed Blade | 1 Nos |
| Fixed Blade Heating Load (kw) | 1.5 |
| Rotory Blade | 1 Nos |
| Rotory Blade Heating Load (kw) | 1.5 |
| Drive | From Printing Machine |
| Belt Conveyor System | Provided |
| Bag Counter Buzzer | Provided |
| Total Connected Load (kw) | 3 |
