Recycling Plants

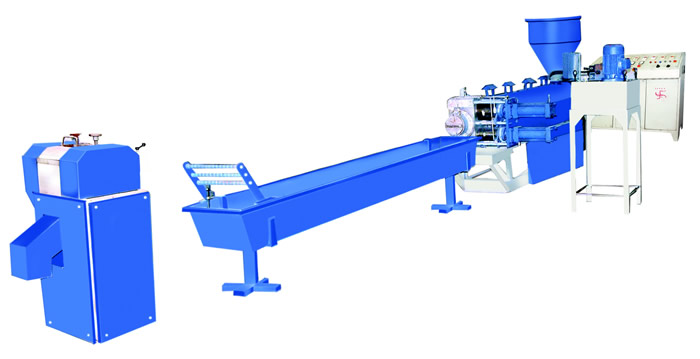

M. AJAY offers highly efficient, power efficient modern reprocess plants suitable for all major recycling polymer waste like PP raffia tape waste, cuttings of woven fabric, industrial plastic wastes and general purpose wastes like LDPE/LLDPE/ HIPS/PP/HDPE/Polyester etc. These plants are incorporated with high out put extruders, water ring palletisers/ air cooled die face cutters/ hydraulic operated continuous Screen changers and pallet drying systems. M.AJAY also offers conventional Plants incorporated with Extruder. Hydraulic continuous Screen Changer,Strand die, SS water tank and palletiser. M.AJAY offers plants ranging from 65 mm extruders to 125 mm extruders with peak output capacities of 40 kgs/hr to 250 kgs/hr.

Salient Features

  • Rugged models with strand palletisers/ water ring palletiser/ air die face cutters.
  • Integral thrust bearing mounted helical gear box.
  • Hydraulic Operated continuous Screen changer.
  • Cold Start preventor for extruder.
  • Digital Temperature control panel.
MODEL  MAF-65 /RP MAF-75/ RP  MAF-90/RP  MAF-100/ RP  MAF/125/RP
Screw Dia (mm) 65 75 90 100 125
L/D Ratio 26:1 26:1 20:1 26:1 26:1
Max.Out Put (Kg./hr.) 40 to 50 60 to 70. 80 to100 in LDPE 100 to 125 150 to 200
Main Drive (KW.AC) 11 11 15 18.75 45
Total Connected Load (KW) 28 32 42 52 75
Additional Agglomerate
Grinder
Crammer
Feeder
HYD. CONT. SCREEN CHANGER
Agglomerate
Grinder
Crammer
Feeder
HYD. CONT. SCREEN CHANGER
Agglomerate
Grinder
Crammer
Feeder
HYD. CONT. SCREEN CHANGER
Agglomerate
Grinder
Crammer
Feeder
HYD. CONT. SCREEN CHANGER
Agglomerate
Grinder
Crammer
Feeder
HYD. CONT. SCREEN CHANGER
