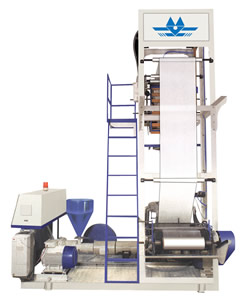

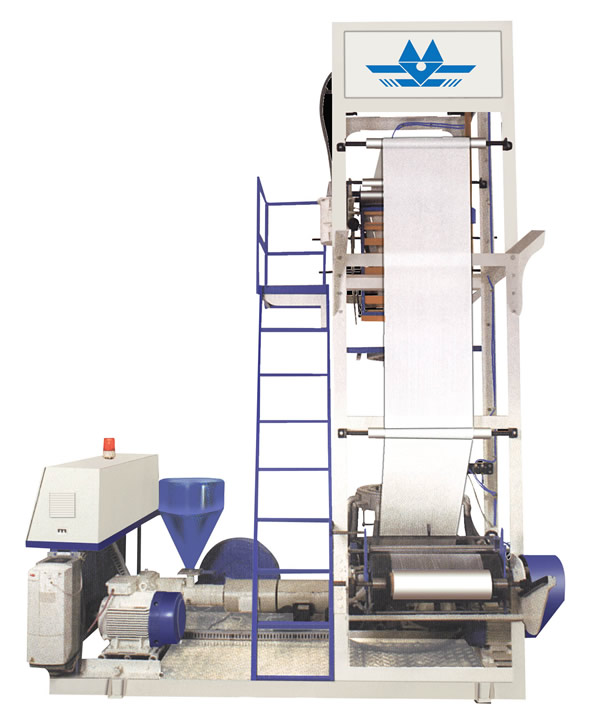

Compact Blown Film Plant

Compact Blown Film Plant

M.AJAY offers Compact Monolayer Blown Film lines with the best combinations of technology and performance. These low investment, power efficient, high-speed plants provides increased output on smaller layflat products, creating lower conversion costs and high profits for the processors. M.AJAY offers plants ranging from 32 mm extruders to 65 mm extruders with peak output capacities of 25 kgs/hr to 90 kgs/hr.

Salient Features

  • Rugged compact models.

  • Grooved Feed Barrels and Screws.

  • Higher out put.

  • Integral thrust bearing mounted helical gear box.

  • Spiral die.

  • AC frequency drive for Extruder and Take up.

  • Film embossing (RimZim) arrangement.

  • Surface winder with electronic torque drive.

  • Cold Start preventor for extruder.

Optional

  • EMBOSSING UNIT.

  • UNIVERSAL GUZZETING DEVICE.

  • ROTATING DIE.

  • EXTRA DIE PUNCH SET.

  • MOVABLE SLITTER,CORONA TREATER.

  • CALIBRATING BASKET.

Technical specifications:

MODEL

 MAF/BF/32

MAF/BF/40

MAF/BFH/40

MAF/BF/45

MAF/BF/55
COMPACT

MAF/BF/55
HEAVY

SCREW DIA.

32 MM

40 MM

40 MM

45 MM

55 MM

55 MM

OUTPUT (KGS/HR)

25 KGS

42 KGS

55 KGS

65 KGS

75 KGS

85 KGS

MAIN DRIVE

7.5 HP

10 HP

15 HP

15 HP

20 HP

30 HP

DIE

SPIRAL

SPIRAL

SPIRAL

SPIRAL

SPIRAL

SPIRAL

NIP ROLLER

500 MM

650 MM

800 MM

850 MM

900 MM

1000 MM

SURFACE WINDER

SINGLE STATION

SINGLE STATION

SINGLE STATION

TWO
STATION

TWO
STATION

TWO
STATION

FILTER TYPE

CANDLE

CANDLE

CANDLE

CANDLE

CANDLE

CANDLE

AIR RING

DUAL LIP

DUAL LIP

DUAL LIP

DUAL LIP

DUAL LIP

DUAL LIP

CONNECTED LOAD

14.5 KW

20.5 KW

25.5 KW

27 KW

33.5 KW

42.5 KW

* Peak output may vary ± 10 % depending upon raw material, size and gauge.

Applications

  • SHM-HDPE :Pick up bags/ T-shirts bags/Garbage bags/ Liners.

  • LLDPE: Heavy duty bags/ Shopping Bags/ Textile carry Bags/Chemical Liners.
